Please send RFQ , we will respond immediately.

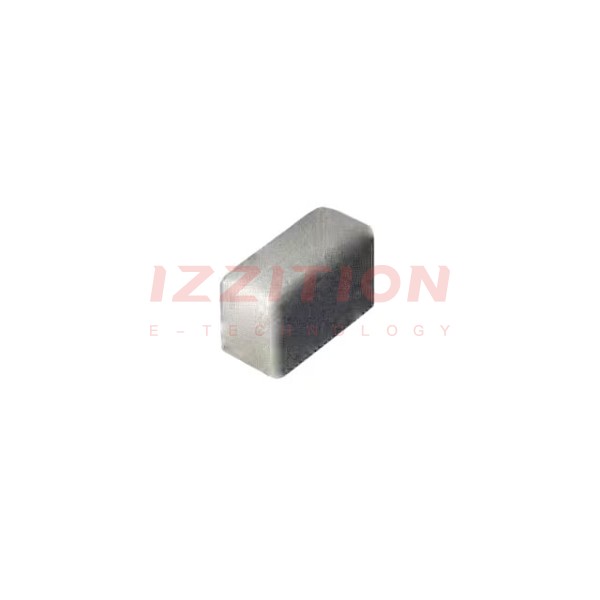

| Part Number | BSPQ000603041N6B00 | BSPQ000603041N8B00 | BSPQ000603043N6B00 | BSPQ000603042N6B00 | BSPQ000603041N9B00 | BSPQ000603041N7B00 | BSPQ000603040N6B00 | BSPQ000603041N0B00 | BSPQ000603041N1B00 | BSPQ000603041N2B00 | BSPQ000603041N3B00 | BSPQ000603041N5B00 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | PulseLarsen Antennas | PulseLarsen Antennas | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | PulseLarsen Antennas | PulseLarsen Antennas | Chilisin Electronics | PulseLarsen Antennas | Chilisin Electronics | PulseLarsen Antennas |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 1.6 nH | 1.8 nH | 3.6 nH | 2.6 nH | 1.9 nH | 1.7 nH | 0.6 nH | 1 nH | 1.1 nH | 1.2 nH | 1.3 nH | 1.5 nH |
| Tolerance | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 1 A | 800 mA | 500 mA | 600 mA | 600 mA | 800 mA | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 80mOhm Max | 170mOhm Max | 120mOhm Max | 120mOhm Max | 70mOhm Max | 40mOhm Max | 40mOhm Max | 40mOhm Max | 40mOhm Max | 40mOhm Max | 50mOhm Max |
| Q @ Freq | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz |
| Frequency - Self Resonant | 10GHz | 10GHz | 7GHz | 9GHz | 10GHz | 10GHz | 20GHz | 16GHz | 14GHz | 13GHz | 13GHz | 12GHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) |
