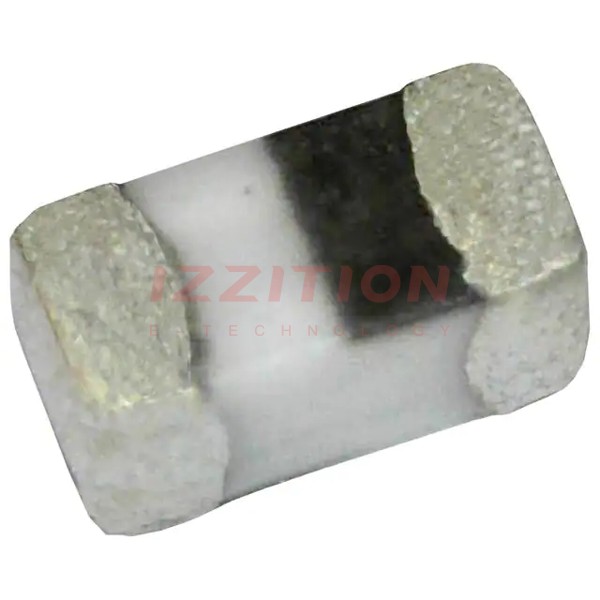

| Part Number | BSCQ000603037N5JHR | BSCQ000603037N5HHR |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 7.5 nH | 7.5 nH |
| Tolerance | ±5% | ±3% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | 305mA | 305mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 550mOhm Max | 550mOhm Max |
| Q @ Freq | 14 @ 500MHz | 14 @ 500MHz |
| Frequency - Self Resonant | 4.6GHz | 4.6GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) |
