Please send RFQ , we will respond immediately.

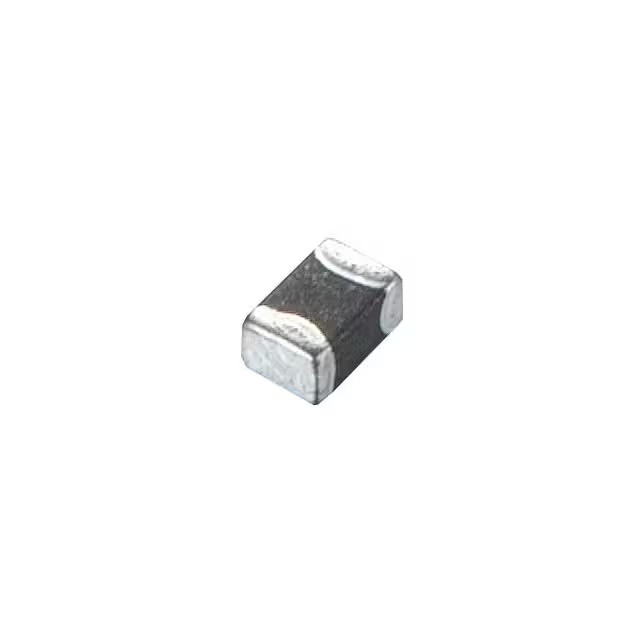

| Part Number | BSCL00201212100K00 | BSCL00201212100L00 | BSCL00201212100M00 | BSCL00201212150K00 | BSCL00201212120K00 | BSCL00201212180K00 |
|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 10 µH | 10 µH | 15 µH | 12 µH | 18 µH |
| Tolerance | ±10% | ±15% | ±20% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 15 mA | 15 mA | 15 mA | 5 mA | 15 mA | 5 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max | 1.1Ohm Max | 1.1Ohm Max | 800mOhm Max | 1.2Ohm Max | 900mOhm Max |
| Q @ Freq | 45 @ 2MHz | 45 @ 2MHz | 45 @ 2MHz | 30 @ 1MHz | 45 @ 2MHz | 30 @ 1MHz |
| Frequency - Self Resonant | 24MHz | 24MHz | 24MHz | 19MHz | 22MHz | 18MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 2 MHz | 2 MHz | 1 MHz | 2 MHz | 1 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 | 0805 | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
