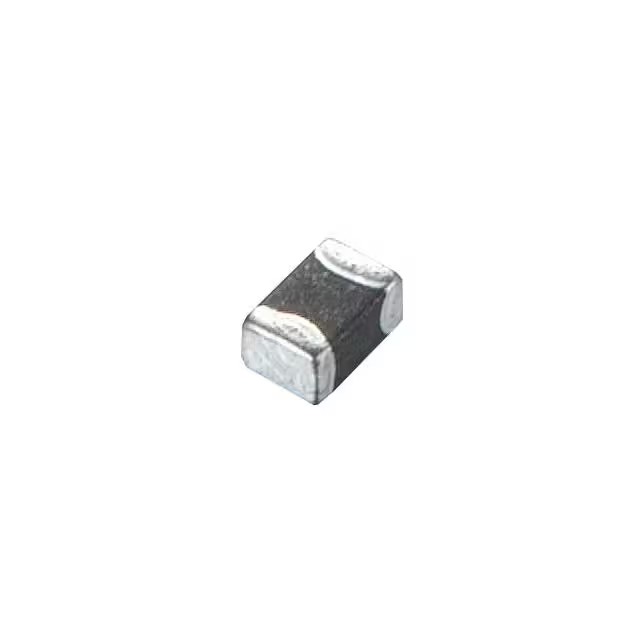

| Part Number | BSCL00160808120M00 | BSCL001608081R0M00 | BSCL00160808150M00 | BSCL00160808220M00 | BSCL00160808100M00 | BSCL00160808120K00 | BSCL00160808120L00 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 1 µH | 15 µH | 22 µH | 10 µH | 12 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% | ±15% |
| Current Rating (Amps) | 3 mA | 25 mA | 1 mA | 1 mA | 5 mA | 3 mA | 3 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.8Ohm Max | 600mOhm Max | 1.5Ohm Max | 1.7Ohm Max | 1.7Ohm Max | 1.8Ohm Max | 1.8Ohm Max |
| Q @ Freq | 30 @ 2MHz | 35 @ 10MHz | 20 @ 1MHz | 20 @ 1MHz | 30 @ 2MHz | 30 @ 2MHz | 30 @ 2MHz |
| Frequency - Self Resonant | 15MHz | 65MHz | 14MHz | 11MHz | 17MHz | 15MHz | 15MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 10 MHz | 1 MHz | 1 MHz | 2 MHz | 2 MHz | 2 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
