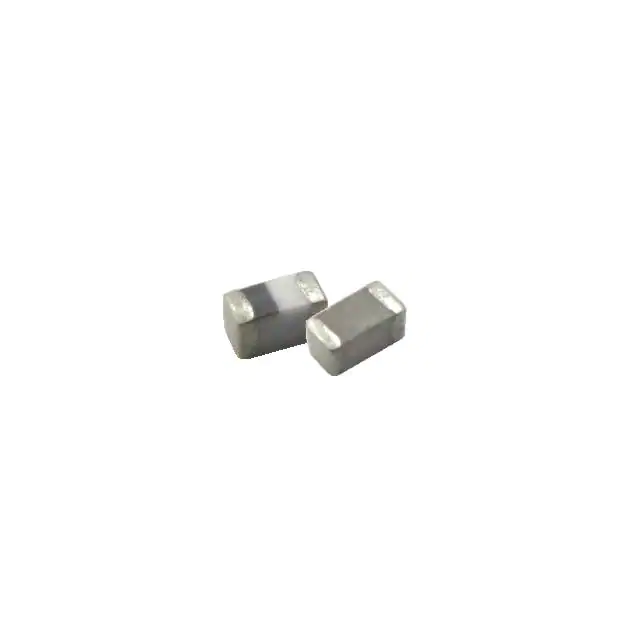

| Part Number | BSCH00160808R22K00 | BSCL00160808R22K00 | BSCH00160808R27K00 | BSCH00160808R12K00 | BSCH00160808R22J00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Pulse Electronics Power |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ferrite | Ceramic | Ceramic | Ceramic |
| Inductance | 220 nH | 220 nH | 270 nH | 120 nH | 220 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 250 mA | 50 mA | 150 mA | 300 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2Ohm Max | 800mOhm Max | 2.2Ohm Max | 1.3Ohm Max | 2Ohm Max |
| Q @ Freq | 8 @ 50MHz | 25 @ 25MHz | 8 @ 50MHz | 8 @ 50MHz | 8 @ 50MHz |
| Frequency - Self Resonant | 500MHz | 150MHz | 470MHz | 650MHz | 500MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 25 MHz | 50 MHz | 50 MHz | 50 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.039" (1.00mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
