Please send RFQ , we will respond immediately.

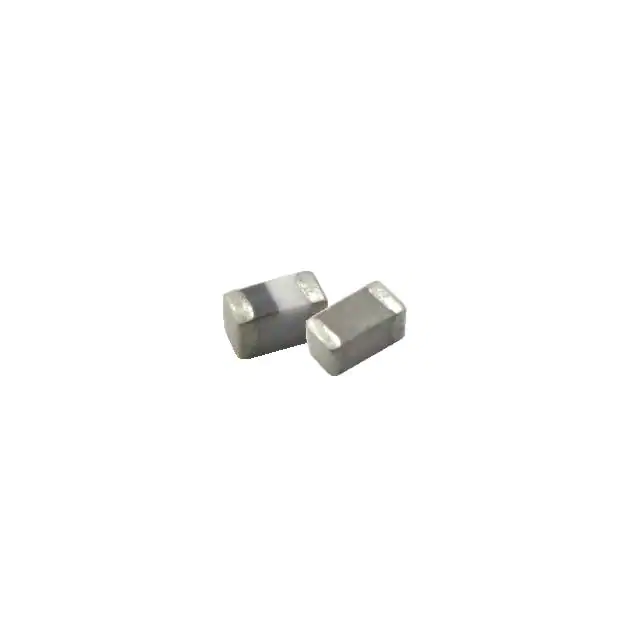

| Part Number | BSCH001005051N3SCP | BSCH001005051N8SCP | BSCH001005051N5SCP | BSCH001005054N3SCP | BSCH001005053N3SCP | BSCH001005051N3SCS | BSCH001005051N6SCP | BSCH001005051N0SCP | BSCH001005051N1SCP | BSCH001005051N2SCP |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Pulse Electronics Power | Pulse Electronics Power | Pulse Electronics Power | Pulse Electronics Power | Chilisin Electronics | Chilisin Electronics | Pulse Electronics Power | Chilisin Electronics | Pulse Electronics Power |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 1.3 nH | 1.8 nH | 1.5 nH | 4.3 nH | 3.3 nH | 1.3 nH | 1.6 nH | 1 nH | 1.1 nH | 1.2 nH |
| Tolerance | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH | ±0.3nH |
| Current Rating (Amps) | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 100mOhm Max | 100mOhm Max | 100mOhm Max | 180mOhm Max | 150mOhm Max | 100mOhm Max | 100mOhm Max | 70mOhm Max | 100mOhm Max | 90mOhm Max |
| Q @ Freq | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz |
| Frequency - Self Resonant | 9GHz | 8.7GHz | 9GHz | 6GHz | 6.3GHz | 9GHz | 8.7GHz | 10GHz | 10GHz | 10GHz |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
