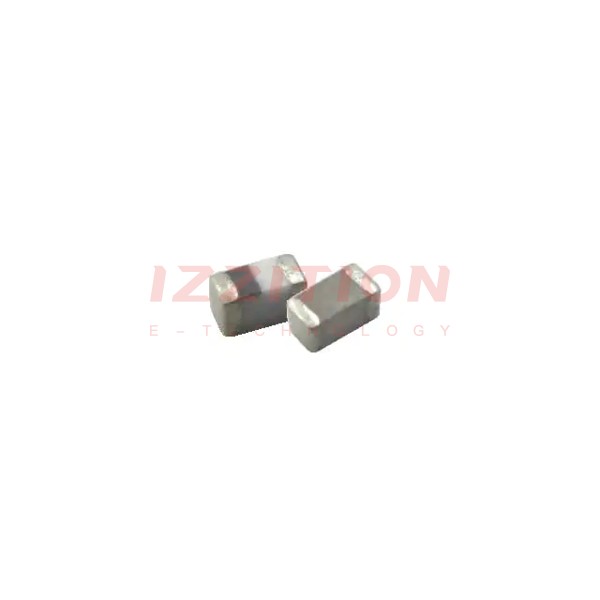

| Part Number | BSCH0010050510NKCP | BSCH0010050515NKCP | BSCH0010050518NKCP | BSCH0010050510NKCS | BSCH0010050512NKCP | BSCH0010050510NJCP |
|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Pulse Electronics Power |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 10 nH | 15 nH | 18 nH | 10 nH | 12 nH | 10 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 260mOhm Max | 500mOhm Max | 550mOhm Max | 260mOhm Max | 400mOhm Max | 260mOhm Max |
| Q @ Freq | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz |
| Frequency - Self Resonant | 3.9GHz | 2.8GHz | 2.5GHz | 3.9GHz | 3GHz | 3.9GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
