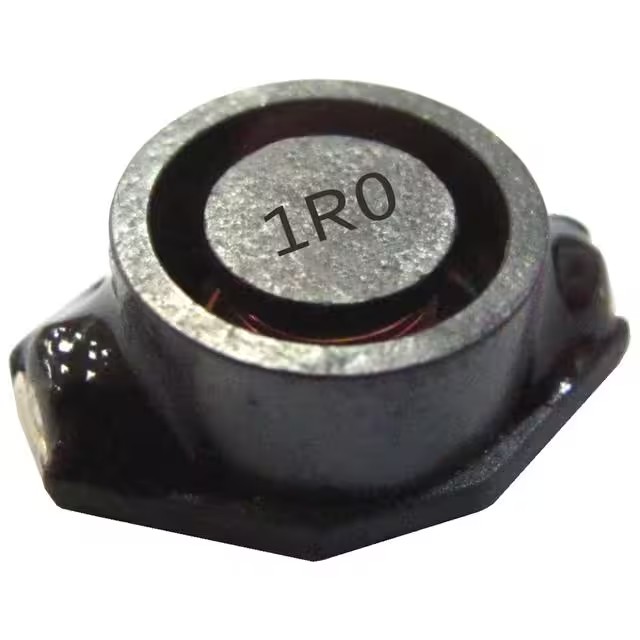

| Part Number | BPSY00191576101M00 | BPSY00191576151M00 | BPSY00191576102M00 | BPSY00191576100M00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 150 µH | 1 mH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 1.3 A | 530 mA | 3.9 A |
| Current - Saturation (Isat) | 1.7A | 1.3A | 530mA | 5.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 210mOhm Max | 300mOhm Max | 2.01Ohm Max | 40mOhm Max |
| Q @ Freq | 40 @ 100kHz | 50 @ 100kHz | 60 @ 100kHz | 40 @ 100kHz |
| Frequency - Self Resonant | 5.5MHz | 4.8MHz | 1MHz | 24MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
