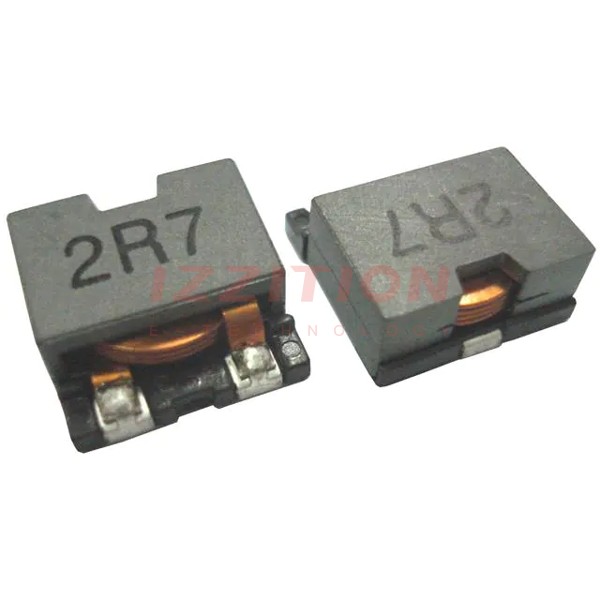

| Part Number | BPSS000807251R0T00 | BPSS000807251R5T00 | BPSS00080725100T00 | BPSS00080725150T00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 6.22 A | 5 A | 1.9 A | 1.7 A |
| Current - Saturation (Isat) | 8.3A | 7.2A | 2.8A | 2.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 14.28mOhm Max | 19.7mOhm Max | 92.4mOhm Max | 170mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.343" L x 0.291" W (8.70mm x 7.40mm) | 0.343" L x 0.291" W (8.70mm x 7.40mm) | 0.343" L x 0.291" W (8.70mm x 7.40mm) | 0.343" L x 0.291" W (8.70mm x 7.40mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
