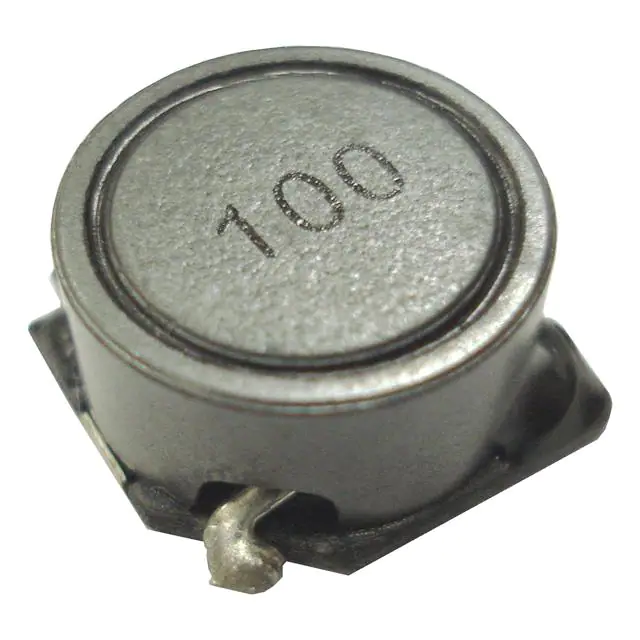

| Part Number | BPSF00101045100M00 | BPSF00101045101M00 | BPSF00101045150M00 | BPSF00101045102M00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | - | Ferrite |
| Inductance | 10 µH | 100 µH | 15 µH | 1 mH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 1.1 A | 2.2 A | 290 mA |
| Current - Saturation (Isat) | 3A | 1A | 2.4A | 320mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 36.4mOhm Max | 200mOhm Max | 47.2mOhm | 2.8Ohm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
