Please send RFQ , we will respond immediately.

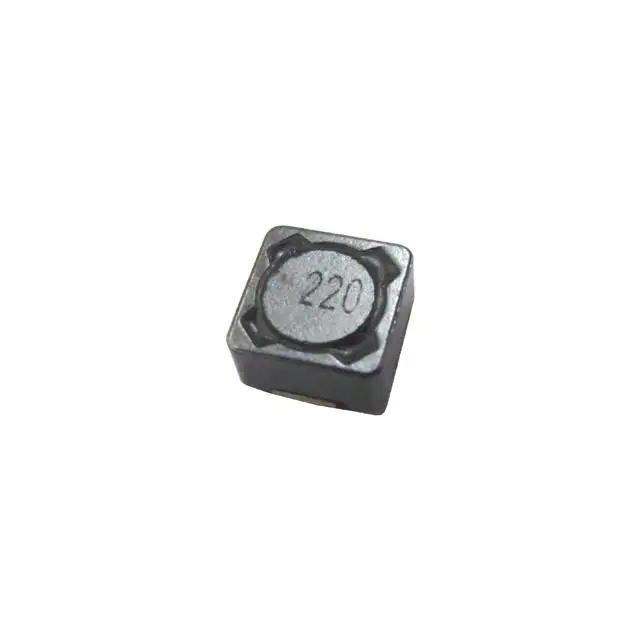

| Part Number | BPSC00131380121M00 | BPSC00131380181M00 | BPSC00131380151M00 | BPSC00131380121T00 | BPSC00131380221M00 | BPSC00131380821M00 | BPSC00131360121M00 | BPSC00131380101M00 | BPSC00131380120M00 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Pulse Electronics Power | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | - | Ferrite |
| Inductance | 120 µH | 180 µH | 150 µH | 120 µH | 220 µH | 820 µH | 120 µH | 100 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±30% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | - | - | - | - | - | - | - | - | - |
| Current - Saturation (Isat) | 2.2A | 1.8A | 2A | 2.2A | 1.7A | 770mA | 1.5A | 2.5A | 7.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 190mOhm Max | 310mOhm Max | 250mOhm Max | 190mOhm Max | 350mOhm Max | 1.36Ohm Max | 180mOhm Max | 170mOhm Max | 30mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.236" (6.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
