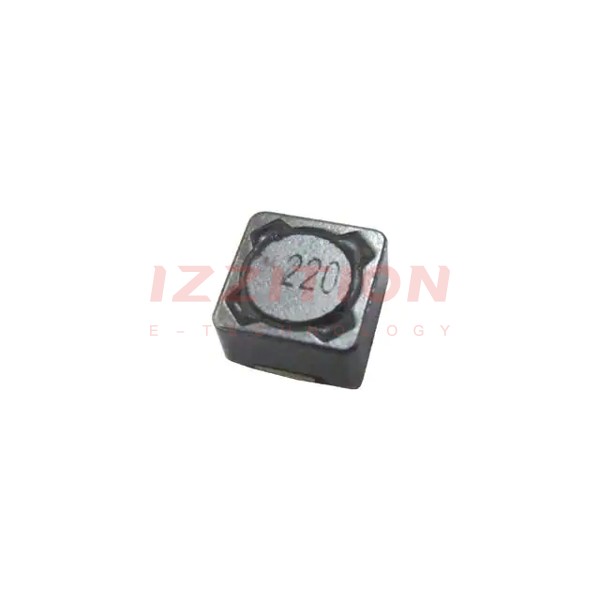

| Part Number | BPSC00101140270T00 | BPSC00101140470T00 | BPSC00101140220T00 | BPSC00101140270M00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 27 µH | 47 µH | 22 µH | 27 µH |
| Tolerance | ±30% | ±30% | ±30% | ±20% |
| Current Rating (Amps) | - | - | - | - |
| Current - Saturation (Isat) | 2.4A | 1.8A | 2.6A | 2.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 96mOhm Max | 144mOhm Max | 80mOhm Max | 96mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
