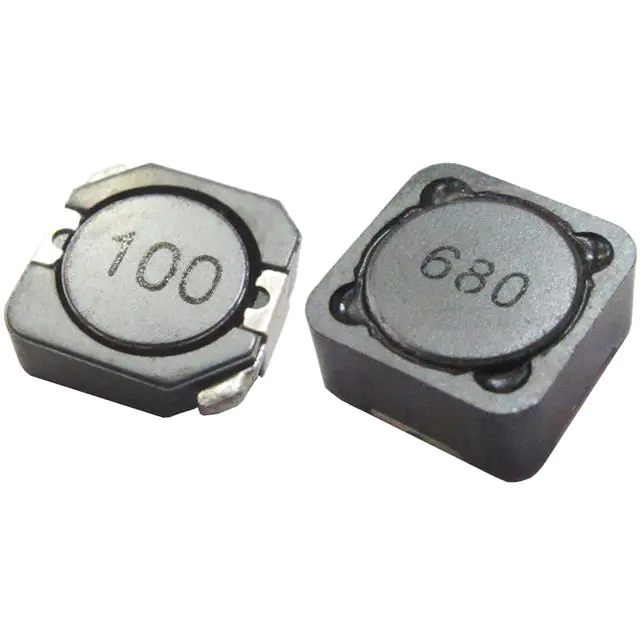

| Part Number | BPSA00131358680M00 | BPSA00131358681M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 680 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.2 A | 730 mA |
| Current - Saturation (Isat) | 1.3A | 430mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 99.8mOhm Max | 912mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 7MHz | 2MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
