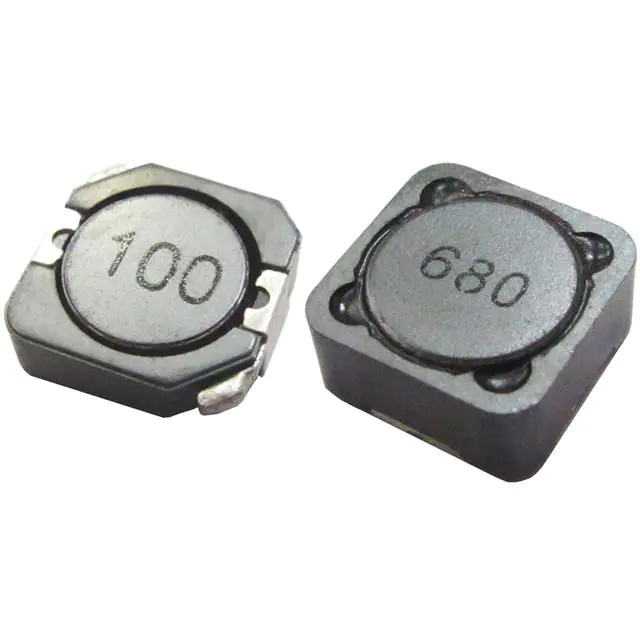

| Part Number | BPSA00131358471M00 | BPSA00131358470M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 µH | 47 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 880 mA | 2.5 A |
| Current - Saturation (Isat) | 490mA | 1.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 624mOhm Max | 74.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 2.5MHz | 8MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
