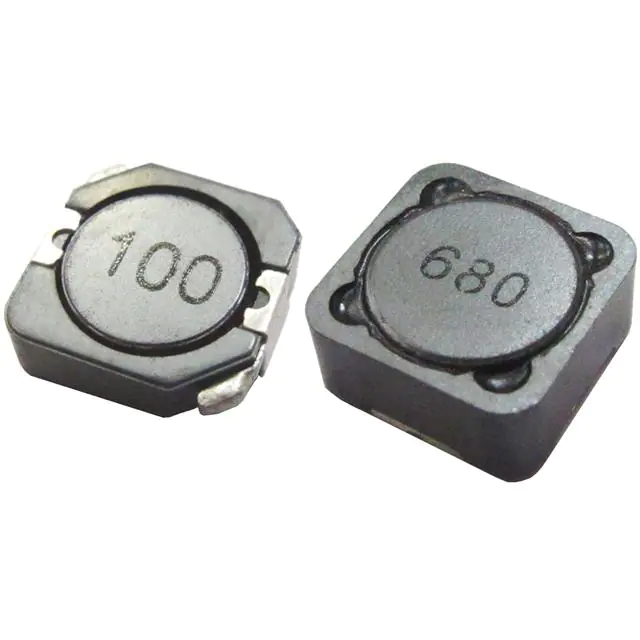

| Part Number | BPSA00070758100M00 | BPSA00070758150M00 | BPSA00070748100M00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 2.2 A | 1.78 A |
| Current - Saturation (Isat) | 2.6A | 2.1A | 1.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 46mOhm Max | 60.9mOhm Max | 43.2mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 22MHz | 14MHz | 17MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.189" (4.80mm) |
