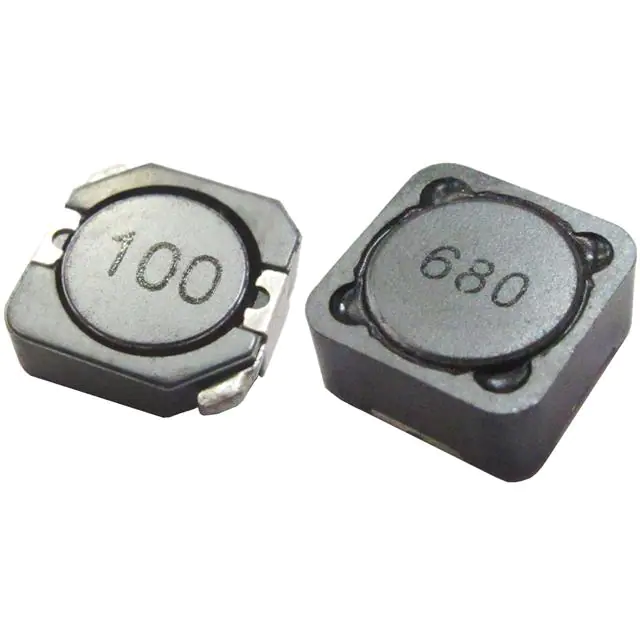

| Part Number | BPSA00060630150M00 | BPSA00060630151M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 15 µH | 150 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.4 A | 500 mA |
| Current - Saturation (Isat) | 1A | 340mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 89.4mOhm Max | 780mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 15MHz | 4MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
