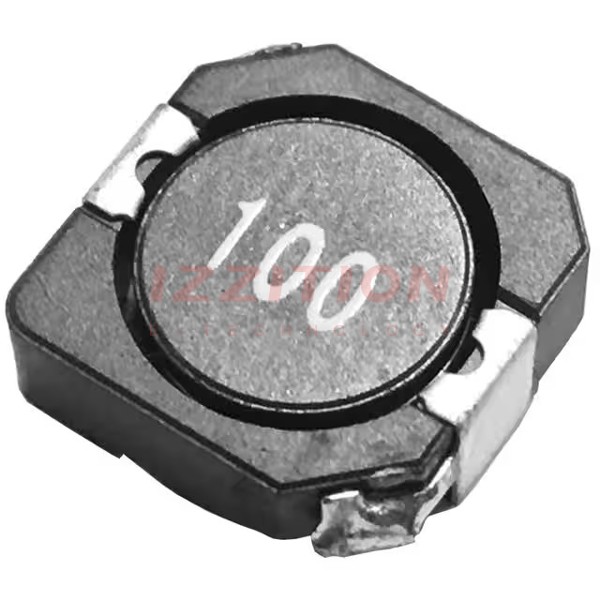

| Part Number | BPRR00101041220M00 | BPRR00101041220MA0 | BPRR00101041220T00 | BPRR00101041270M00 | BPRR00101041221M00 | BPRR00101041820M00 | BPRR00101031220M00 | BPRR00101041120M00 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 22 µH | 27 µH | 220 µH | 82 µH | 22 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±30% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 2.8 A | 2.5 A | 2.3 A | 700 mA | 1.3 A | 1.6 A | 3.4 A |
| Current - Saturation (Isat) | 2.9A | 4A | 2.9A | 2.6A | 920mA | 1.45A | 2.16A | 3.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 73mOhm Max | 66.3mOhm Max | 73mOhm Max | 88mOhm Max | 756mOhm Max | 283mOhm Max | 143mOhm Max | 46mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.398" L x 0.394" W (10.10mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) |
