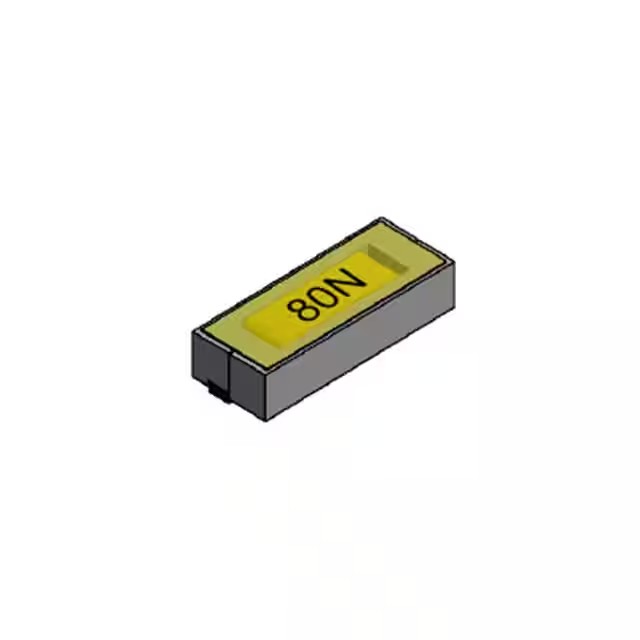

| Part Number | BPED0010042480NL2E | BPED0010042480NM2E | BPED0010042480NK2E |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 80 nH | 80 nH | 80 nH |
| Tolerance | ±15% | ±20% | ±10% |
| Current Rating (Amps) | 33 A | 33 A | 33 A |
| Current - Saturation (Isat) | 80A | 80A | 80A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.1mOhm | 1.1mOhm | 1.1mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.394" L x 0.150" W (10.00mm x 3.80mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
