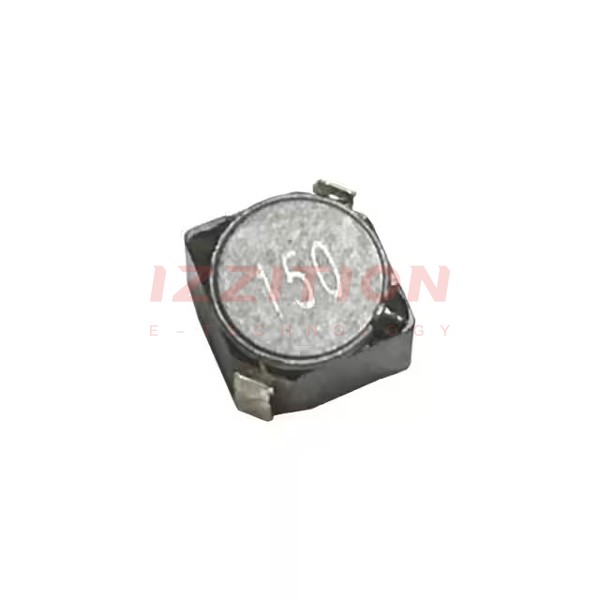

| Part Number | BPDR000505301R0T00 | BPDR000505301R2T00 | BPDR000505301R8T00 | BPDR000505201R0T00 | BPDR00050530100T00 | BPDR00050530120T00 | BPDR00050530150T00 | BPDR00050530180T00 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.2 µH | 1.8 µH | 1 µH | 10 µH | 12 µH | 15 µH | 18 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.56 A | 2.56 A | 2.2 A | 1.72 A | 1 A | 840 mA | 760 mA | 720 mA |
| Current - Saturation (Isat) | 2.56A | 2.56A | 2.2A | 1.72A | 1A | 840mA | 760mA | 720mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 23.6mOhm Max | 23.6mOhm Max | 27.5mOhm Max | 45mOhm Max | 128.3mOhm Max | 131.6mOhm Max | 149mOhm Max | 166mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
