Please send RFQ , we will respond immediately.

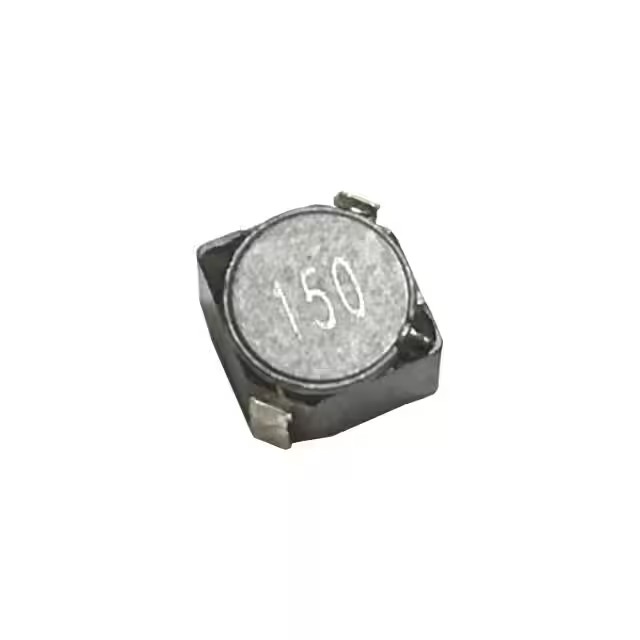

| Part Number | BPDR00050530100T00 | BPDR00050530150T00 | BPDR00050530120T00 | BPDR00050530180T00 | BPDR000505301R0T00 | BPDR00050520100T00 | BPDR00050530100M00 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 12 µH | 18 µH | 1 µH | 10 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±20% |
| Current Rating (Amps) | 1 A | 760 mA | 840 mA | 720 mA | 2.56 A | 610 mA | 1 A |
| Current - Saturation (Isat) | 1A | 760mA | 840mA | 720mA | 2.56A | 610mA | 1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 128.3mOhm Max | 149mOhm Max | 131.6mOhm Max | 166mOhm Max | 23.6mOhm Max | 260mOhm Max | 128.3mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) |
