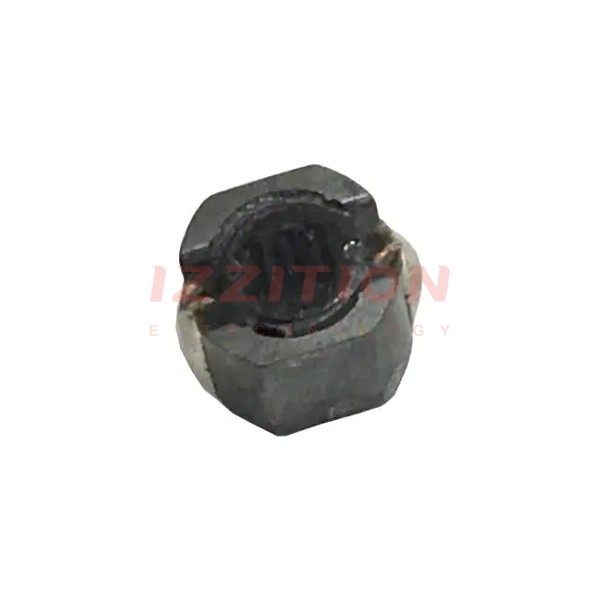

| Part Number | BPAL000606301R0T00 | BPAL000606301R5T00 | BPAL00060630100T00 | BPAL00060630120T00 | BPAL00060630150T00 | BPAL00060630180T00 | BPAL000606301R0M00 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 10 µH | 12 µH | 15 µH | 18 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±20% |
| Current Rating (Amps) | 5.32 A | 4.45 A | 2.25 A | 2.12 A | 2.04 A | 1.86 A | 5.32 A |
| Current - Saturation (Isat) | 3.59A | 2.93A | 1.14A | 1.04A | 930mA | 850mA | 3.59A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 14mOhm Max | 16mOhm Max | 59mOhm Max | 63mOhm Max | 75mOhm Max | 89mOhm Max | 14mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
