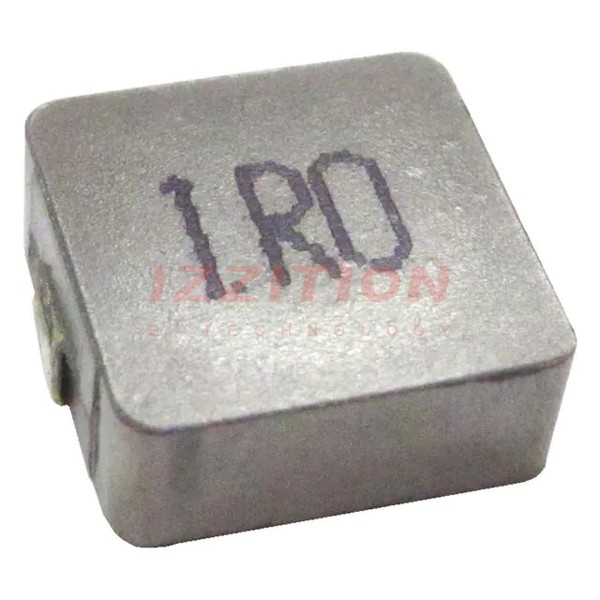

| Part Number | BMRA000505301R5MA1 | BMQA000505301R5MA1 | BMRA000505201R5MA1 | BMRA000505301R0MA1 | BMRA000505301R2MA1 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Pulse Electronics Power | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - |
| Inductance | 1.5 µH | 1.5 µH | 1.5 µH | 1 µH | 1.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6 A | 7.5 A | 5.5 A | 7 A | 6.5 A |
| Current - Saturation (Isat) | 10A | 12.5A | 6.5A | 11A | 11A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 25mOhm Max | 15mOhm Max | 35mOhm Max | 15mOhm Max | 15mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.230" L x 0.217" W (5.85mm x 5.50mm) | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.224" L x 0.213" W (5.70mm x 5.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
