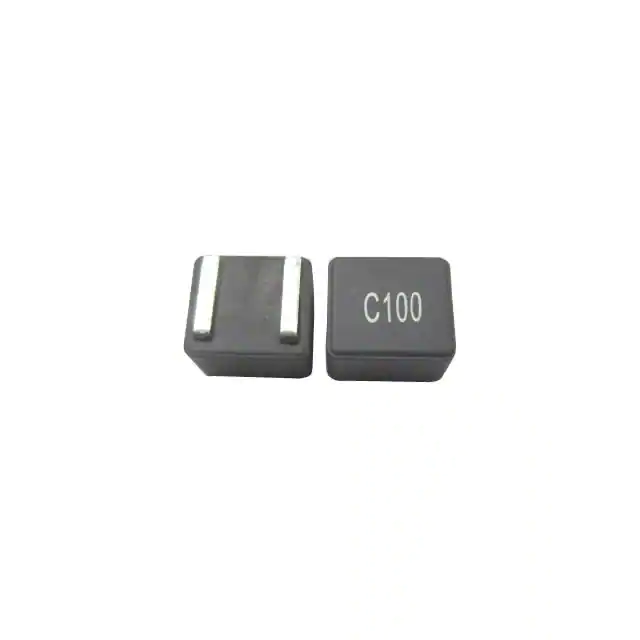

| Part Number | BFSI00121109150M05 | BFSI001211091R0M05 | BFSI00121109100M05 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 11 A | 40 A | 13 A |
| Current - Saturation (Isat) | 13.5A | 45A | 17.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 15mOhm Max | 2mOhm Max | 12mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Height - Seated (Max) | 0.346" (8.80mm) | 0.346" (8.80mm) | 0.346" (8.80mm) |
