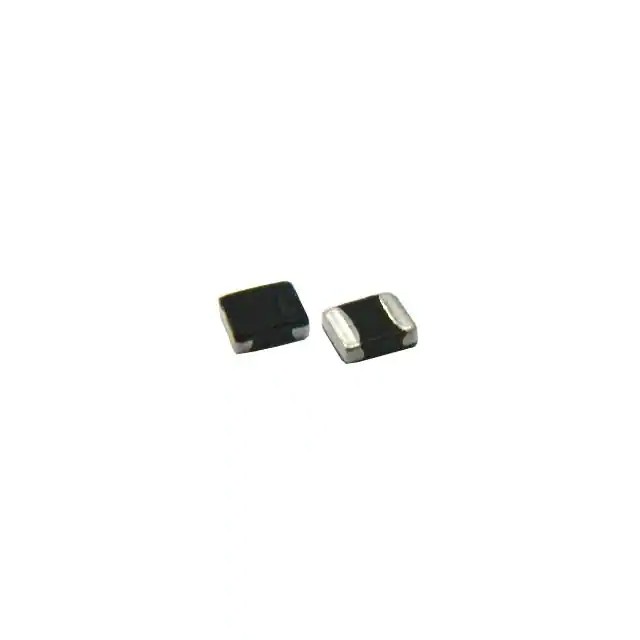

| Part Number | BDHL00252012R33MQ1 | BDHE00252012R33MQ1 | BDHL00252010R33MQ1 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 330 nH | 330 nH | 330 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5.8 A | 5.8 A | 4.8 A |
| Current - Saturation (Isat) | 8.5A | 8.5A | 6.5A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 18mOhm Max | 18mOhm Max | 24mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 2 MHz | 2 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) |
