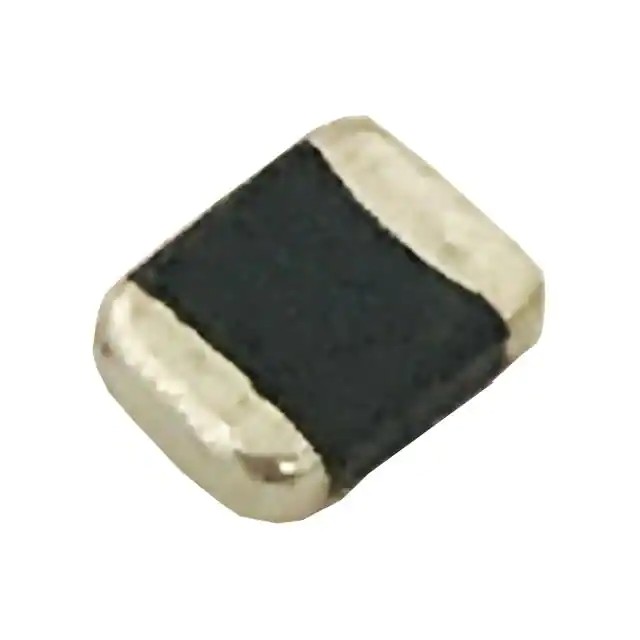

| Part Number | BDHE00201610R68MQ1 | BDHL00201610R68MQ1 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.7 A | 2.7 A |
| Current - Saturation (Isat) | 3.2A | 3.2A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 56mOhm Max | 56mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 2 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
