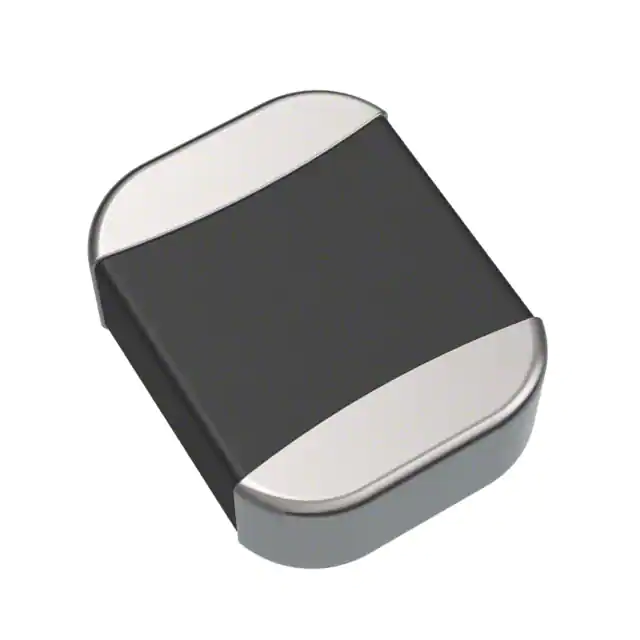

| Part Number | BDCD002016101R0MS1 | BDCL002016101R0MS1 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 2 A |
| Current - Saturation (Isat) | 3.4A | 2.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 96mOhm Max | 96mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz | 2 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
