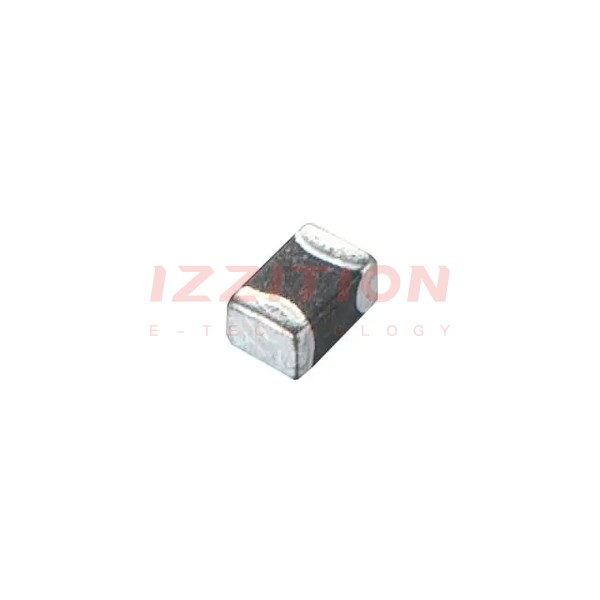

| Part Number | BBBK00160808310Y00 | BBBK00160808110Y00 | BBBK00160808300Y00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Pulse Electronics Power | Pulse Electronics Power |
| Product Status | Active | Active | Active |
| Filter Type | Signal Line | - | - |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 31 Ohms @ 100 MHz | 11 Ohms @ 100 MHz | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 400mA | 500mA | 400mA |
| DC Resistance (DCR) (Max) | 100mOhm | 50mOhm | 100mOhm |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Features | - | - | - |
