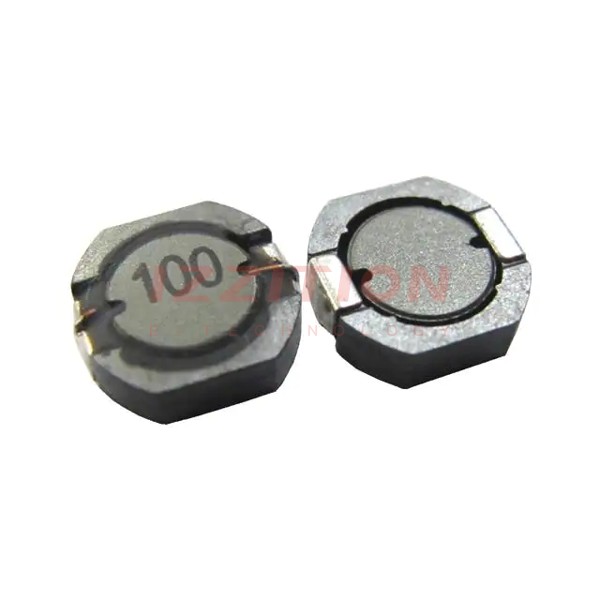

| Part Number | APSR000807401R0T00 | APSR000807401R5T00 | APSR000807401R8T00 | APSR00080740100T00 | APSR00080740150T00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1.8 µH | 10 µH | 15 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 9 A | 8 A | 7.92 A | 3.25 A | 2.7 A |
| Current - Saturation (Isat) | 8A | 7A | 6.5A | 2.5A | 2.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 6.38mOhm Max | 8.64mOhm Max | 9.6mOhm Max | 55.6mOhm Max | 71.4mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
