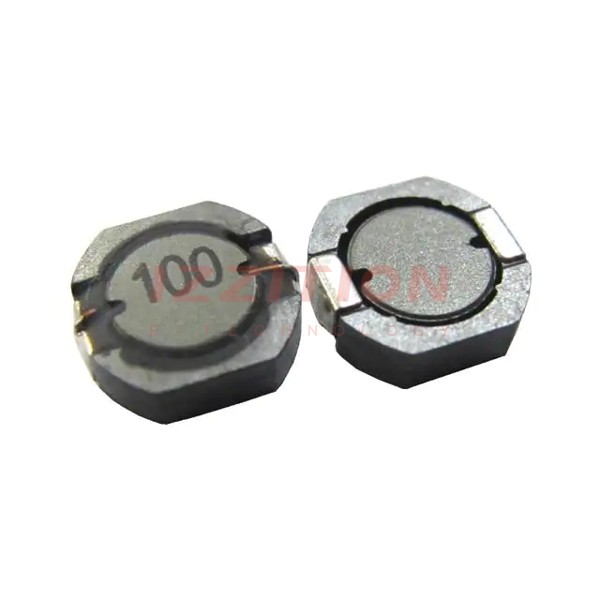

| Part Number | APSR00080740121T00 | APSR00080740151T00 | APSR00080740101T00 | APSR00080740121M00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 150 µH | 100 µH | 120 µH |
| Tolerance | ±30% | ±30% | ±30% | ±20% |
| Current Rating (Amps) | 890 mA | 820 mA | 950 mA | 890 mA |
| Current - Saturation (Isat) | 750mA | 650mA | 850mA | 750mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 560mOhm Max | 710mOhm Max | 480mOhm Max | 560mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) | 0.362" L x 0.291" W (9.20mm x 7.40mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
