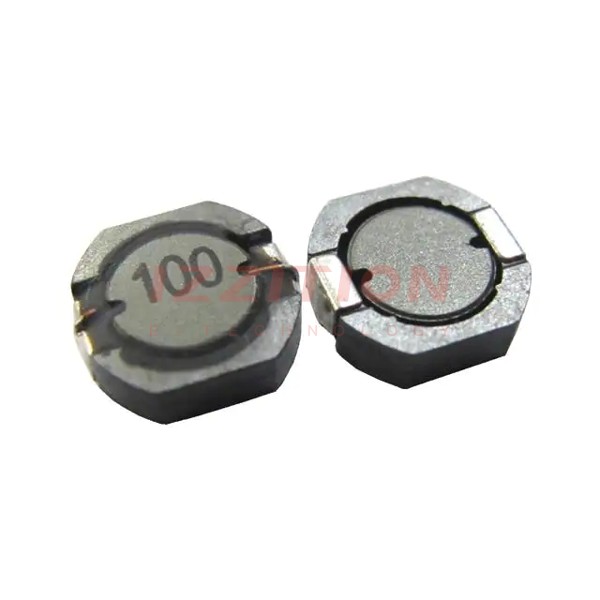

| Part Number | APSR000807256R8T00 | APSR000807256R8M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±20% |
| Current Rating (Amps) | 2.7 A | 2.7 A |
| Current - Saturation (Isat) | 1.32A | 1.32A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 66.3mOhm Max | 66.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.343" L x 0.291" W (8.70mm x 7.40mm) | 0.343" L x 0.291" W (8.70mm x 7.40mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
