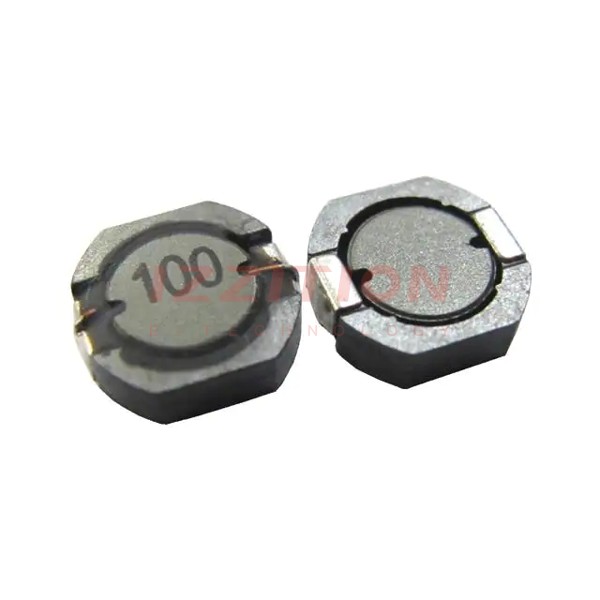

| Part Number | APSR000505221R2T00 | APSR000505221R8T00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.2 µH | 1.8 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.43 A | 3.12 A |
| Current - Saturation (Isat) | 4.3A | 3.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 25mOhm Max | 32mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.244" L x 0.197" W (6.20mm x 5.00mm) | 0.244" L x 0.197" W (6.20mm x 5.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) |
