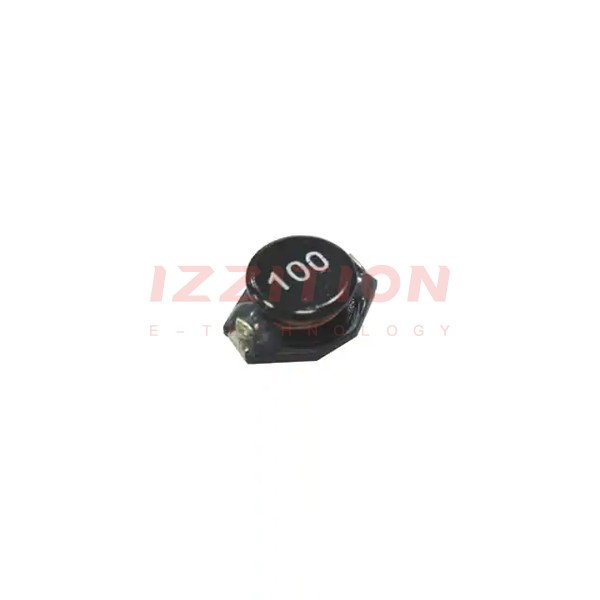

| Part Number | APSL001309521R5M00 | APSL001309521R0M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 6.4 A | 6.8 A |
| Current - Saturation (Isat) | 8A | 9A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 9mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 90MHz | 100MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.205" (5.21mm) | 0.205" (5.21mm) |
