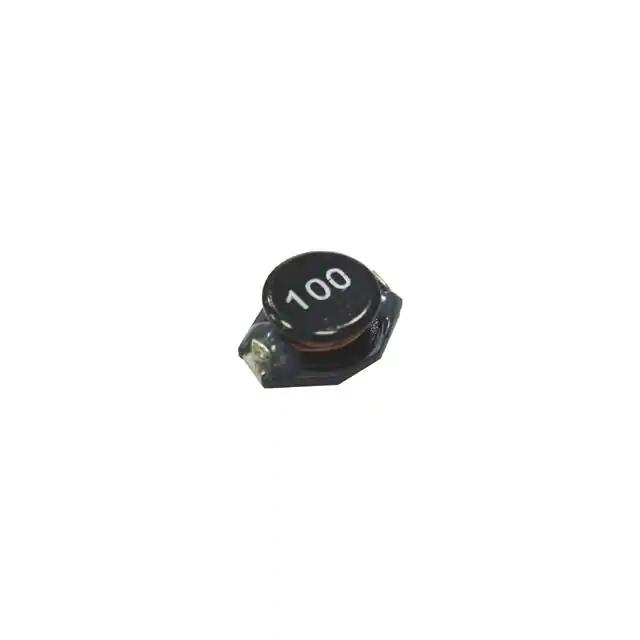

| Part Number | APSL00130911102M00 | APSL00130911100M00 | APSL00130911101M00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 100 mA | 3.5 A | 1.2 A |
| Current - Saturation (Isat) | 800mA | 8A | 2.5A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2Ohm Max | 33mOhm Max | 220mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 1.5MHz | 22MHz | 5MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.450" (11.43mm) | 0.450" (11.43mm) | 0.450" (11.43mm) |
