APSA00131358681M00
  • Share:

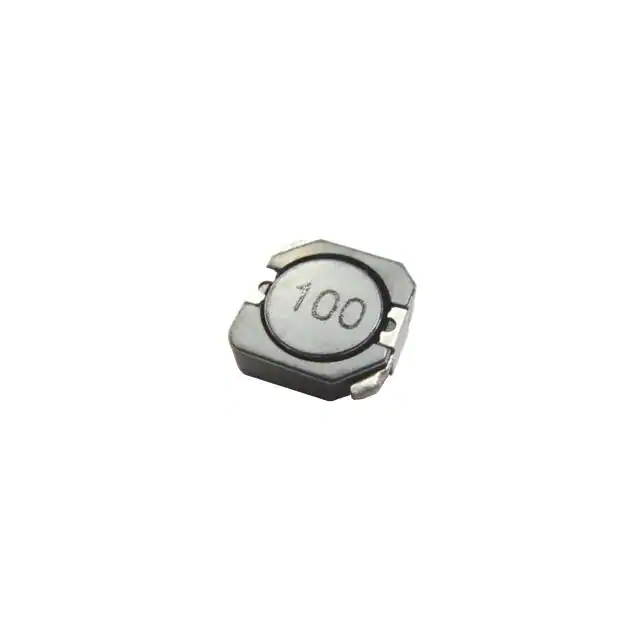

Chilisin Electronics APSA00131358681M00

Manufacturer No:
APSA00131358681M00
Manufacturer:
Chilisin Electronics
Package:
Tape & Reel (TR)
Datasheet:
APSA00131358681M00 Datasheet
ECAD Model:
-
Description:
INDUCTOR POWER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:680 µH
Tolerance:±20%
Current Rating (Amps):730 mA
Current - Saturation (Isat):430mA
Shielding:Shielded
DC Resistance (DCR):912mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.228" (5.80mm)
0 Remaining View Similar

In Stock

$0.54
1,714

Please send RFQ , we will respond immediately.

Similar Products

Part Number APSA00131358681M00 APSA00131358680M00
Manufacturer Chilisin Electronics Chilisin Electronics
Product Status Active Active
Type Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite
Inductance 680 µH 68 µH
Tolerance ±20% ±20%
Current Rating (Amps) 730 mA 2.2 A
Current - Saturation (Isat) 430mA 1.3A
Shielding Shielded Shielded
DC Resistance (DCR) 912mOhm Max 99.8mOhm Max
Q @ Freq - -
Frequency - Self Resonant - -
Ratings AEC-Q200 AEC-Q200
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard
Supplier Device Package - -
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.228" (5.80mm) 0.228" (5.80mm)
