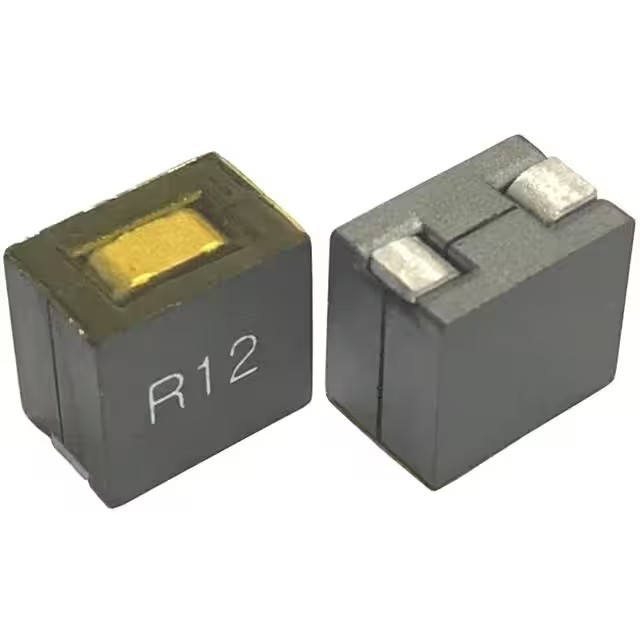

| Part Number | APMV00110812R22K0E | APMV00110812R25K0E | APMV00110812R27K0E | APMV00110812R22M0E | APMV00110812R22L0E | APMV00110812R32K0E |
|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 nH | 250 nH | 270 nH | 220 nH | 220 nH | 320 nH |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±15% | ±10% |
| Current Rating (Amps) | 75 A | 75 A | 75 A | 75 A | 75 A | 75 A |
| Current - Saturation (Isat) | 75A | 66A | 60A | 75A | 75A | 51A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.15mOhm | 0.15mOhm | 0.15mOhm | 0.15mOhm | 0.15mOhm | 0.15mOhm |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.421" L x 0.295" W (10.70mm x 7.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
