APMV00110812R15L0E
  • Share:

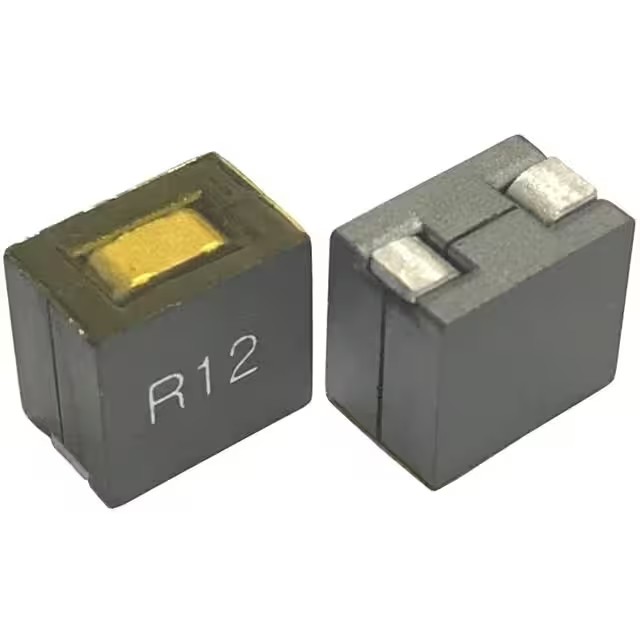

Chilisin Electronics APMV00110812R15L0E

Manufacturer No:
APMV00110812R15L0E
Manufacturer:
Chilisin Electronics
Package:
Tape & Reel (TR)
Datasheet:
APMV00110812R15L0E Datasheet
ECAD Model:
-
Description:
INDUCTOR POWER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Ferrite
Inductance:150 nH
Tolerance:±15%
Current Rating (Amps):75 A
Current - Saturation (Isat):115A
Shielding:Shielded
DC Resistance (DCR):0.15mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.421" L x 0.295" W (10.70mm x 7.50mm)
Height - Seated (Max):0.472" (12.00mm)
0 Remaining View Similar

In Stock

$1.53
39

Please send RFQ , we will respond immediately.

Similar Products

Part Number APMV00110812R15L0E APMV00110812R18L0E   APMV00110812R15M0E   APMV00110812R25L0E   APMV00110812R15K0E
Manufacturer Chilisin Electronics Chilisin Electronics Chilisin Electronics Chilisin Electronics Chilisin Electronics
Product Status Active Active Active Active Active
Type - - - - -
Material - Core Ferrite Ferrite Ferrite Ferrite Ferrite
Inductance 150 nH 180 nH 150 nH 250 nH 150 nH
Tolerance ±15% ±15% ±20% ±15% ±10%
Current Rating (Amps) 75 A 75 A 75 A 75 A 75 A
Current - Saturation (Isat) 115A 85A 115A 66A 115A
Shielding Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 0.15mOhm 0.15mOhm 0.15mOhm 0.15mOhm 0.15mOhm
Q @ Freq - - - - -
Frequency - Self Resonant - - - - -
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - - -
Size / Dimension 0.421" L x 0.295" W (10.70mm x 7.50mm) 0.421" L x 0.295" W (10.70mm x 7.50mm) 0.421" L x 0.295" W (10.70mm x 7.50mm) 0.421" L x 0.295" W (10.70mm x 7.50mm) 0.421" L x 0.295" W (10.70mm x 7.50mm)
Height - Seated (Max) 0.472" (12.00mm) 0.472" (12.00mm) 0.472" (12.00mm) 0.472" (12.00mm) 0.472" (12.00mm)
