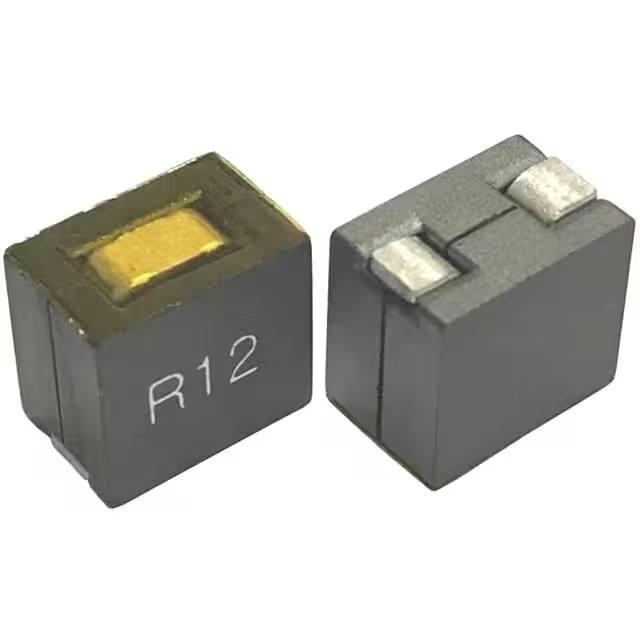

| Part Number | APMV00100612R10L0E | APMV00100612R12L0E | APMV00100612R15L0E | APMV00100612R10M0E | APMV00100612R10K0E |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 nH | 120 nH | 150 nH | 100 nH | 100 nH |
| Tolerance | ±15% | ±15% | ±15% | ±20% | ±10% |
| Current Rating (Amps) | 77 A | 77 A | 77 A | 77 A | 77 A |
| Current - Saturation (Isat) | 125A | 105A | 83A | 125A | 125A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.125mOhm | 0.125mOhm | 0.125mOhm | 0.125mOhm | 0.125mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.394" L x 0.236" W (10.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
