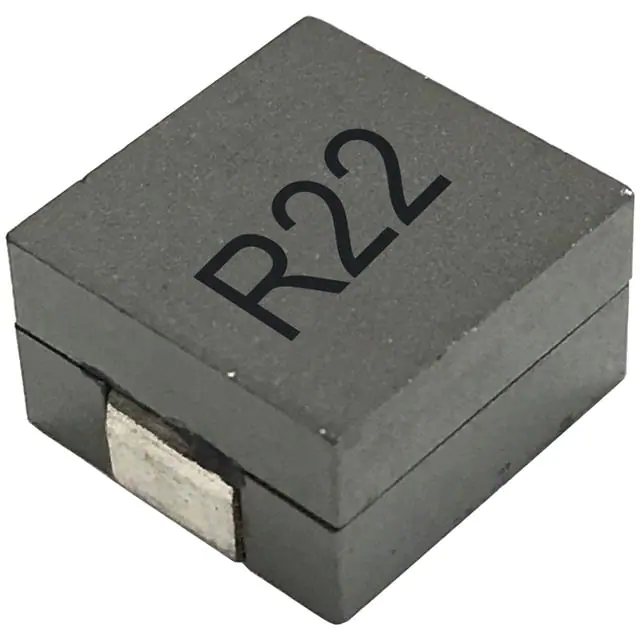

| Part Number | APMI00100874R30L00 | APMI00100874R30M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 300 nH | 300 nH |
| Tolerance | ±15% | ±20% |
| Current Rating (Amps) | 41 A | 41 A |
| Current - Saturation (Isat) | 32A | 32A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.29mOhm | 0.29mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.406" L x 0.301" W (10.31mm x 7.65mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) |
