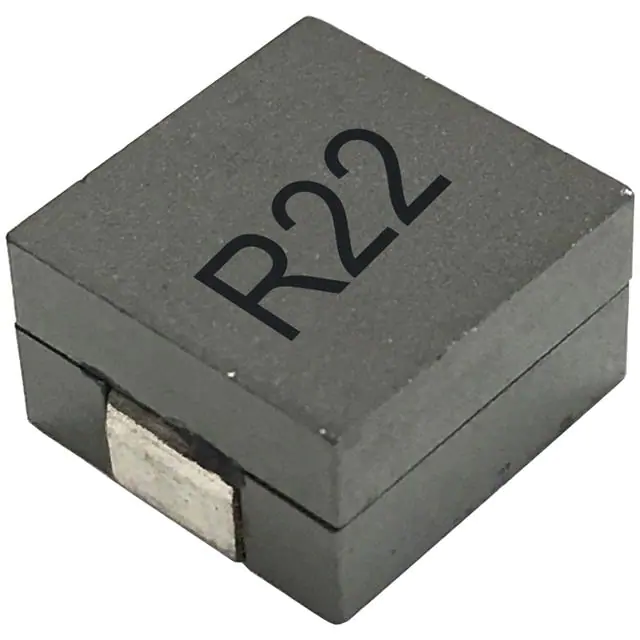

| Part Number | APMI00100868R12L0F | APMI00100868R17L0F | APMI00100868R22L0F | APMI00100868R18L0F | APMI00100868R12M0F | APMI00100868R14L0F | APMI00100868R12K0F | APMI00100868R12L0E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 nH | 170 nH | 220 nH | 180 nH | 120 nH | 140 nH | 120 nH | 120 nH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±20% | ±15% | ±10% | ±15% |
| Current Rating (Amps) | 54 A | 54 A | 54 A | 54 A | 54 A | 54 A | 54 A | 54 A |
| Current - Saturation (Isat) | 80A | 58A | 50A | 56A | 80A | 72A | 80A | 80A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.402" L x 0.307" W (10.20mm x 7.80mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
