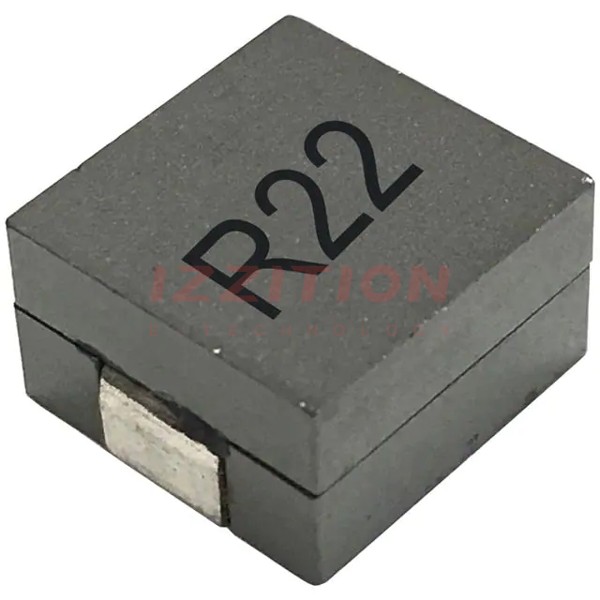

| Part Number | APMI00100750R20L00 | APMI00100750R20M00 | APMI00100750R22L00 | APMI00100750R10L00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 200 nH | 200 nH | 220 nH | 100 nH |
| Tolerance | ±15% | ±20% | ±15% | ±15% |
| Current Rating (Amps) | 31 A | 31 A | 25 A | 31 A |
| Current - Saturation (Isat) | 33A | 33A | 33A | 70A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.39mOhm | 0.39mOhm | 0.39mOhm | 0.39mOhm |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.402" L x 0.276" W (10.20mm x 7.00mm) |
| Height - Seated (Max) | 0.195" (4.96mm) | 0.195" (4.96mm) | 0.195" (4.96mm) | 0.195" (4.96mm) |
