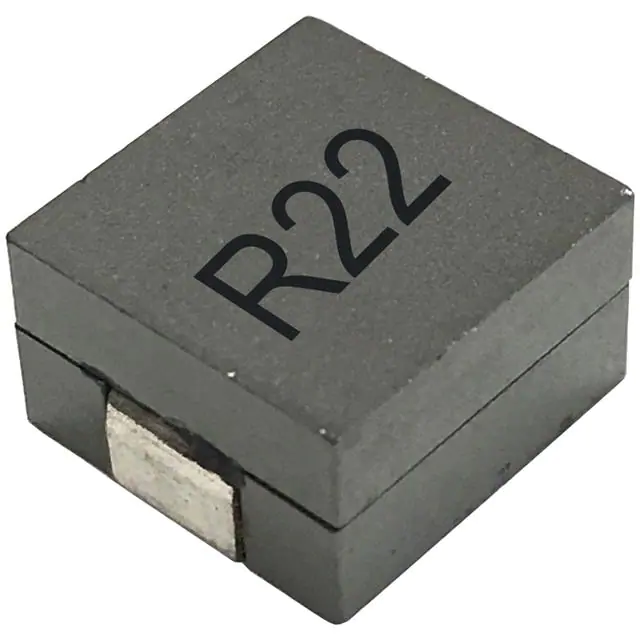

| Part Number | APMI00090680R28K00 | APMI00090680R28M00 | APMI00090680R28L00 | APMI00090680R18K00 | APMI00090680R22K00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 280 nH | 280 nH | 280 nH | 180 nH | 220 nH |
| Tolerance | ±10% | ±20% | ±15% | ±10% | ±10% |
| Current Rating (Amps) | 51 A | 51 A | 51 A | 51 A | 51 A |
| Current - Saturation (Isat) | 34A | 34A | 34A | 54A | 44A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm | 0.29mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.370" L x 0.244" W (9.40mm x 6.20mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
