Please send RFQ , we will respond immediately.

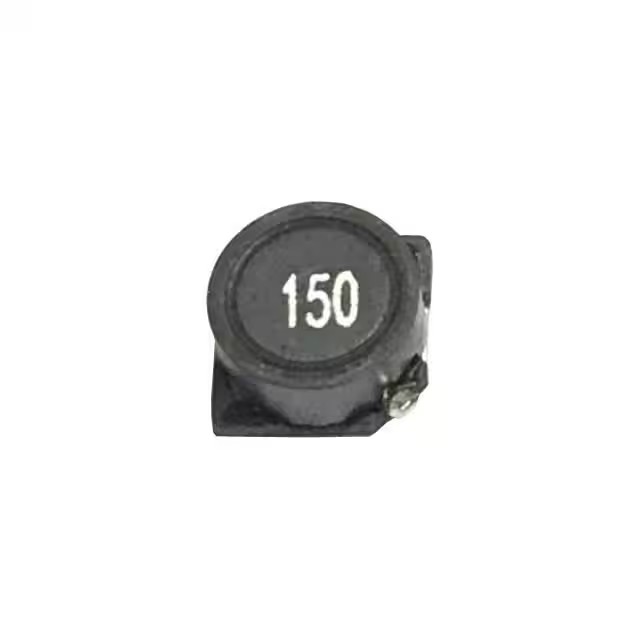

| Part Number | APCF00070745220M00 | APCF00070745220T00 | APCF00070745221M00 | APCA00070745220M00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 220 µH | 22 µH |
| Tolerance | ±20% | ±30% | ±20% | ±20% |
| Current Rating (Amps) | 1.34 A | 1.34 A | 450 mA | 2.2 A |
| Current - Saturation (Isat) | 900mA | 900mA | 330mA | 1.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 61mOhm | 61mOhm | 520mOhm | 82.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.291" L x 0.276" W (7.40mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
