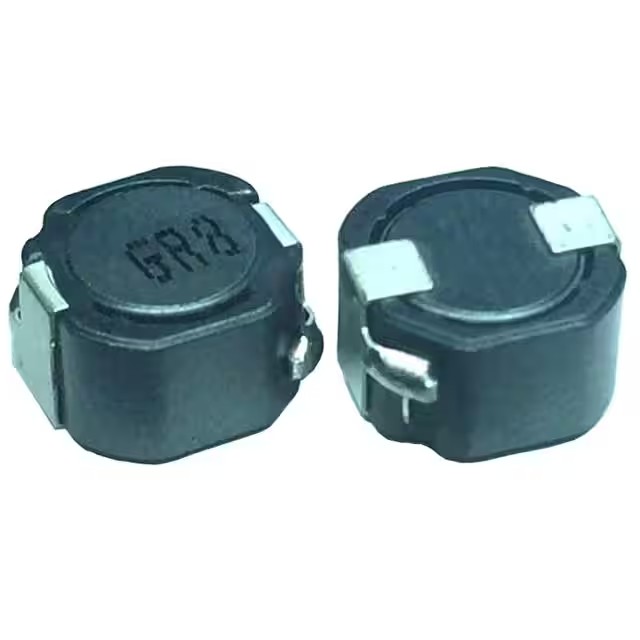

| Part Number | APCA000707451R0T00 | APCF000707451R0T00 | APCA000707451R5T00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1.5 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 6.5 A | 4.5 A | 5.4 A |
| Current - Saturation (Isat) | 7.6A | 4.5A | 6.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 11.7mOhm Max | 11mOhm | 13mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.291" L x 0.276" W (7.40mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
