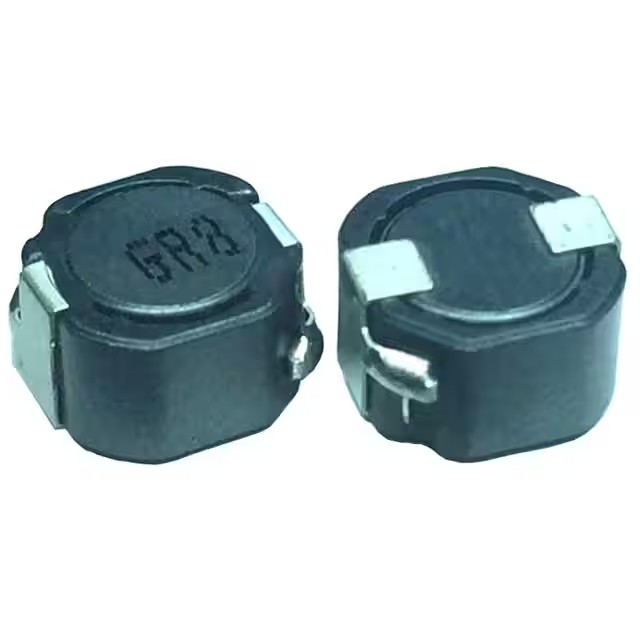

| Part Number | APCA00060645331M00 | APCA00060645330M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 330 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 490 mA | 1.6 A |
| Current - Saturation (Isat) | 280mA | 900mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.104Ohm Max | 120mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.248" L x 0.236" W (6.30mm x 6.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
