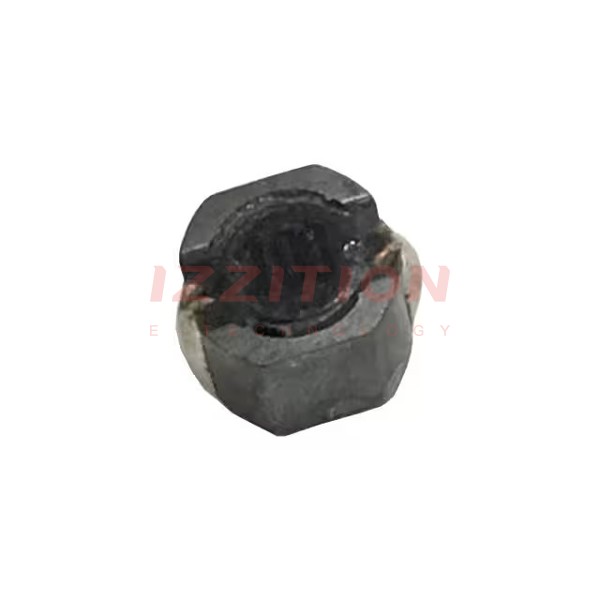

| Part Number | APAL00080845270M70 | APAL00080845270T70 | APAL00080845270M80 | APAL00080845470M70 | APAL00080845220M70 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 27 µH | 27 µH | 27 µH | 47 µH | 22 µH |
| Tolerance | ±20% | ±30% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.1 A | 2.1 A | 2.1 A | 1.6 A | 2.4 A |
| Current - Saturation (Isat) | 1.65A | 1.65A | 1.65A | 1.26A | 1.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 83mOhm | 83mOhm | 83mOhm | 130mOhm | 69mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 150°C | -50°C ~ 150°C | -40°C ~ 125°C | -50°C ~ 150°C | -50°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
