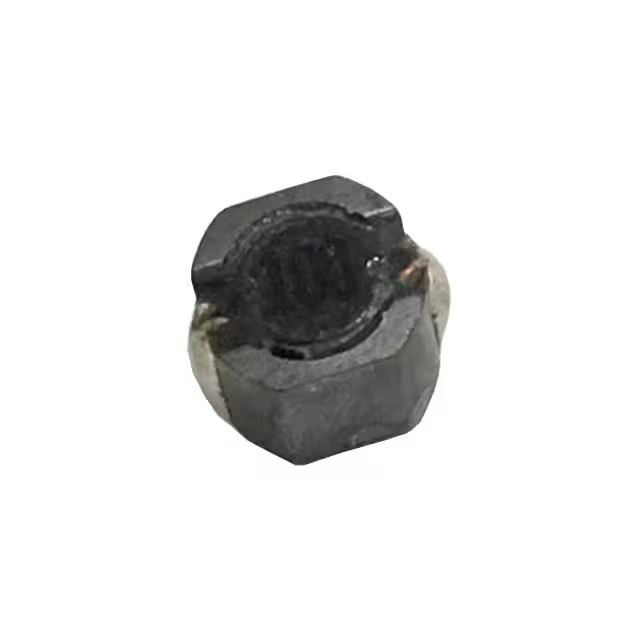

| Part Number | APAL000808451R0T70 | APAL000808451R0T80 | APAL000808451R5T70 | APAL00080845100T70 | APAL00080845150T70 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 11 A | 11 A | 8.6 A | 3.4 A | 2.8 A |
| Current - Saturation (Isat) | 8.5A | 8.5A | 6.3A | 3A | 2.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 9mOhm | 9mOhm | 10mOhm | 33mOhm | 55mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 150°C | -40°C ~ 125°C | -50°C ~ 150°C | -50°C ~ 150°C | -50°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.374" L x 0.295" W (9.50mm x 7.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
