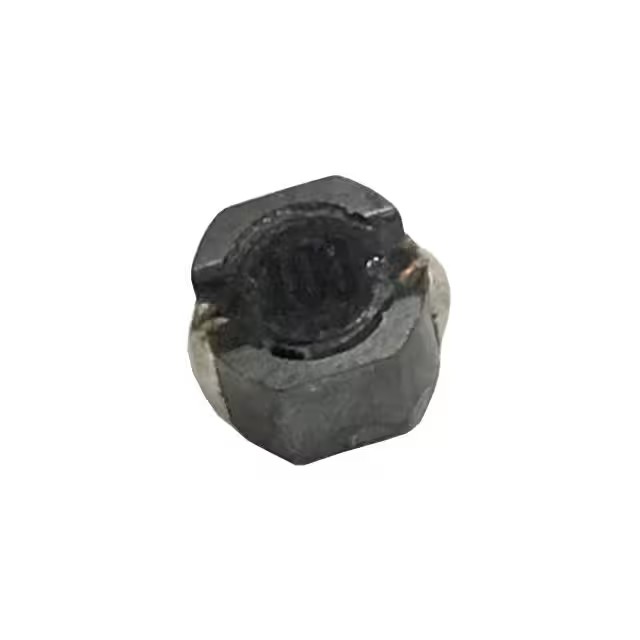

| Part Number | APAL00060645100M70 | APAL00060645150M70 | APAL00060645101M70 | APAL00060645100T70 | APAL00060645100M80 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 100 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±30% | ±20% |
| Current Rating (Amps) | 2.6 A | 2 A | 860 mA | 2.6 A | 2.6 A |
| Current - Saturation (Isat) | 2.1A | 1.7A | 610mA | 2.1A | 2.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 35mOhm | 60mOhm | 320mOhm | 35mOhm | 35mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 150°C | -50°C ~ 150°C | -50°C ~ 150°C | -50°C ~ 150°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
