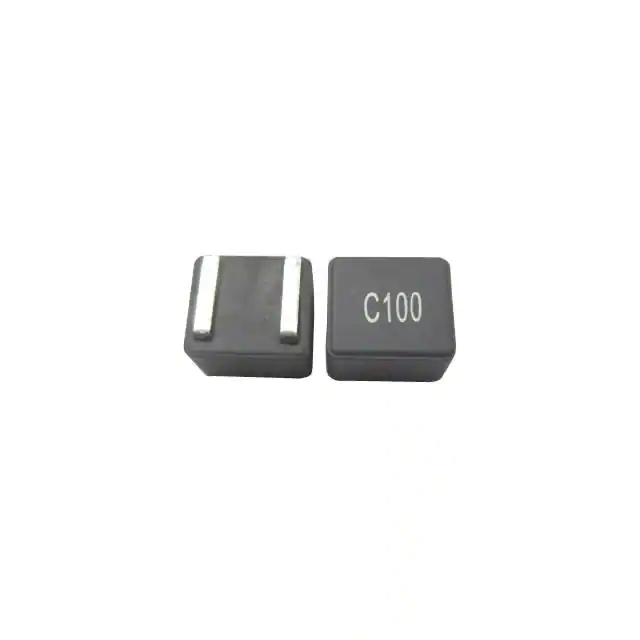

| Part Number | AFSI001211098R2M05 | AFSI001211092R2M05 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal |
| Inductance | 8.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 30 A |
| Current - Saturation (Isat) | 18A | 30A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 9mOhm Max | 2.8mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 155°C | -50°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Height - Seated (Max) | 0.346" (8.80mm) | 0.346" (8.80mm) |
