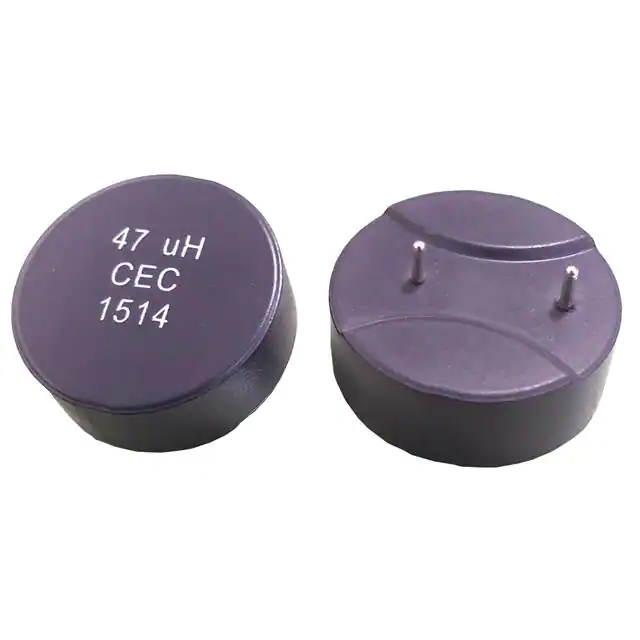

| Part Number | AFDI00303012100M04 | AFDI003030121R0M04 | AFDI00303012150M04 | AFDI00303012101M04 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 10 µH | 1 µH | 15 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 34 A | 90 A | 28 A | 11 A |
| Current - Saturation (Isat) | 32A | 65A | 28A | 9A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.6mOhm Max | 0.48mOhm Max | 4.6mOhm Max | 32mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 155°C | -50°C ~ 155°C | -50°C ~ 155°C | -50°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial, 3 Leads |
| Supplier Device Package | Radial | Radial | Radial | Radial - 3 Leads |
| Size / Dimension | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
