Please send RFQ , we will respond immediately.

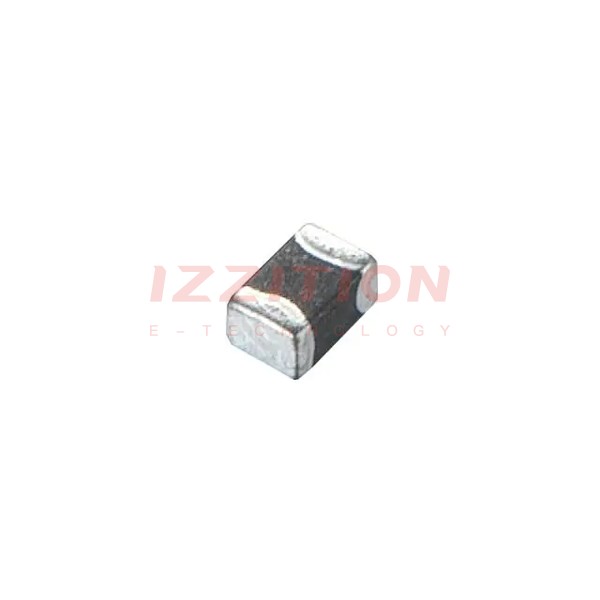

| Part Number | ABGK00201209800Y00 | ABBK00201209800Y00 | ABGK00201209600Y00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Filter Type | Signal Line | Signal Line | Signal Line |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 80 Ohms @ 100 MHz | 80 Ohms @ 100 MHz | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 800mA | 500mA | 900mA |
| DC Resistance (DCR) (Max) | 100mOhm | 150mOhm | 100mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | Automotive | Automotive | Automotive |
